| Configuration | Desktop |
|---|---|
| Printing Process | 4-Drum Method |

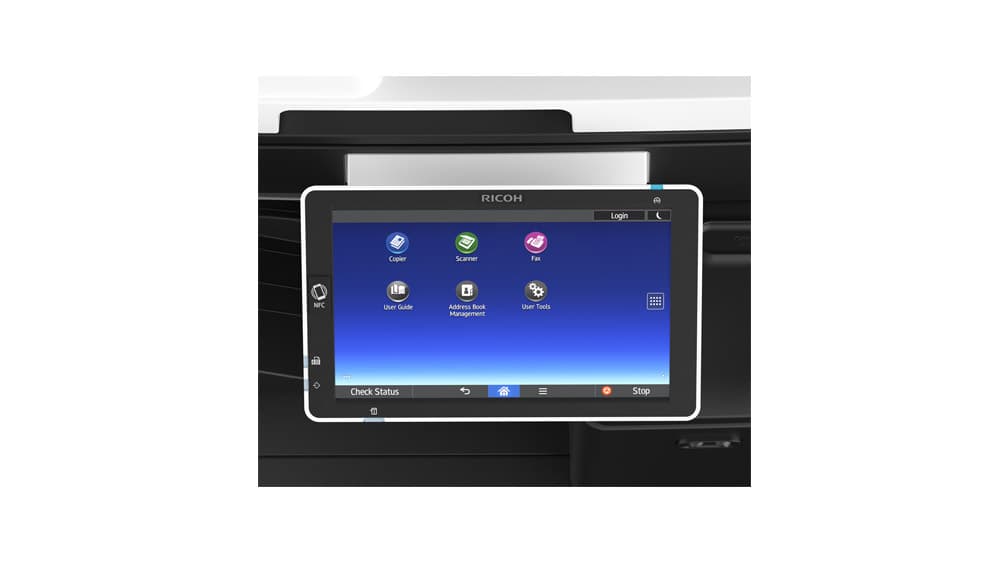

| Control Panel | 10.1" Smart Operation Panel |
| Output Speed Copy/Print | 50-ppm B&W & FC (LTR) |
| First Page Out Time | 4.0 seconds (B&W); 5.7 seconds (Color) |
| Warm-Up Time | 24 seconds |
| Recovery Time From Sleep Mode | Unit: 8.8 seconds Smart Operation Panel: 1.0 second (motion sensor activated) |
| Resolution | 600 dpi |
| System Memory | 2 GB RAM/320GB HDD Standard & 4GB RAM Option |
| Maximum Copy Quantity | Standard: 500 sheets Maximum: 625 sheets (with options) |
| Duplexing | Automatic (Standard) |
| Document Feeder Type | Single Pass Document Feeder (SPDF) |
| Single Pass Document Feeder (SPDF) | Standard |
| Document Feeder Paper Weight | Standard Trays: 16 — 80 lb. Bond/166 lb. Index (60 — 300 g/m2) Bypass Tray: 14 — 80 lb. Bond/ 166 lb. Index (52 — 300 g/m2) Duplex Unit: 14 — 68 lb. Bond (52 — 256 g/m2) |
| Document Feeder Capacity | 220 sheets |
| Preset Reduction and Enlargement Ratios | 25%, 50%, 65%, 73%, 78%, 85%, 93%, 100%, 121%, 129%, 155%, 200%, 400% |
| Zoom Range | 25% to 400% in 1% increments |
| Original Size | 5.5" x 8.5" to 11" x 17" (140 x 216 mm to 279 x 432 mm) |
| Maximum Original Size | Platen: Up to 8.5" x 11.7"/A4 (216 x 297 mm) SPDF: Up to 11" x 17"/A3 (279 x 431 mm) |
| Supported Paper Sizes | 1st Paper Tray: 8.5" x 11" (A4) 2nd Paper Tray: 5.5" x 8.5" — 8.5" x 14" (A6 — LG) Bypass: 5.5" x 8.5" — 8.5" x 14"(A6 — LG); Custom Sizes: Width: 3.5" — 8.5" (90 — 216 mm), Length: 5.8" — 49.6" (148 — 1260 mm) |
| Supported Paper Weights | Standard Trays: 16 — 80 lb. Bond/166 lb. Index (60 — 300 g/m2) Bypass Tray: 14 — 80 lb. Bond/ 166 lb. Index (52 — 300 g/m2) Duplex Unit: 14 — 68 lb. Bond (52 — 256 g/m2) |
| Supported Paper Types | Plain, Recycled, Special Paper 1-3, Letterhead, Cardstock, Preprinted, Bond, High-Gloss Coated, Coated, Color, Labels*, OHP* & Envelopes** |
| Standard Paper Capacity | Standard: 2 x 550 sheets + 100-Sheet Bypass Tray |
| Maximum Paper Capacity | Maximum: 2,300 sheets |
| Standard Output Capacity | 500 sheets |
| Power Source | 120V — 127V, 60Hz, 12A |
| Typical Electricity Consumption (TEC) | 2.24 kWh/week |
| Power Consumption | 1,584W or less; Sleep Mode: 0.78W |
| Energy Star | Certified |
| Dimensions W x D x H | 23.1" x 27.0" x 31" (587 x 685 x 788 mm) |
| Weight | 197 lbs. (89.5 kg) (includes SPDF) |
| Standard Features | Auto Color Calibration, Auto Color Selection, Auto Duplex, Auto Off Timer, Auto Paper Selection, Auto Start, Auto Tray Switch, Bates Stamp, Centralized Address Book Management, Color Balance, Adjustment/Program, Color/Image Creation, Combine Copy (2/4/8 into 1), Cover/Chapter/Slip Sheets, Electronic Sort, Energy Saver Timer, ID Card Copy, Image Density (Auto/Manual), Image Rotation, Image Quality Mode (Text, Photo, Text Photo), Import/Export of Preference Settings, Information Screen (Eco-Friendly Indicator), Interrupt Copy, Home UI Customization, Job Preset (up to 8), Job Programs (up to 25), Login/Logout Button, Remote Operation Panel, Rotate Sort, Sample Copy, Series Copy, Shift/Erase/Margin Adjustment, Simple UI Apps, Simplified Display, Single Function Apps, Smart Apps, Tilt Operation Panel, User Codes (up to 1,000), Web Browser |
| Footnotes | *Bypass Tray only **Paper Tray 2 Only ***Typical Electricity Consumption by ENERGY STAR Qualified Imaging Equipment Test Procedure |
Fax Option Type M39
ID: 418483
1 Bin Tray BN3130
ID: 418376
- Paper Size 5.5" x 8.5" to 11" x 17" (A5 - A3)
- Paper Weight 14 – 80 lb. Bond/166 lb. Index (60 – 300 g/m2)
- Tray Capacity 125 Sheets
Internal Finisher SR3130
ID: 417589
- 500-sheet Internal Finisher provides multi-position stapling and optional hole-punching.
- Recommended for offices with limited floor space.
- Supports Paper Sizes up to 12" x 18".
- Weight: 28.2 lbs. (12.8 kg)
- W × D × H (inches): 21.5 × 20.6 × 6.7
- W × D × H (mm): 546 × 523 × 170
Notes:
- Internal Finisher SR3130 cannot be installed with MP C6004ex, MP C6004ex TE, Internal Shift Tray SH3070, Internal Finisher SR3180, Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.
Punch Unit PU3040 NA
ID: 416615
- Optional hole punching for the Internal Finisher SR3130.
- Supports Paper Sizes up to 11" x 17".
Notes:
- 1. SR3130 is required to add this option.
- 2. Punch Unit PU3040 NA cannot be installed with the Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.
Paper Feed Unit PB1140
ID: 418424
- Tray Capacity 1,100 sheets (550 sheets x 2 trays)
- Paper Size 5,5" x 8.5" to 8.5" x 14" (A6 – LG)
- Paper Weight 14 – 80 lb. Bond/166 lb. Index (60 – 300 g/m2)
- Dimension (WxDxH) 29.9" x 33.1" x 14.9" (760 x 840 x 378 mm)
Cabinet
ID: 100478FNG
- Provides businesses with a convenient option for the storage of supplies and paper.
- Can only be configured with the standard configuration.
- Weight: 32.3 lbs. (14.7 kg)
- W x D x H (inches): 23.1 x 26.7 x 10
- W x D x H (mm): 587 x 678 x 254
Notes:
- Cabinet cannot be installed with Caster Table Type M3, Paper Feed Unit PB3220, Paper Feed Unit PB3240, Paper Feed Unit PB3250 or Paper Feed Unit PB3260.
Caster Table Type M3
ID: 416737
- The caster table must be added to the configuration when the PB3250 Paper Feed Unit is selected. It provides a platform with wheels to easily move the device.
Notes:
- 1. Paper Feed Unit PB3250 is required for this option.
- 2. Caster Table Type M3 can only be installed with Paper Feed Unit PB3250.
Embedded HotSpot Option Type S
ID: 415620
- Required to enable HotSpot printing. One year HotSpot printing subscription service.
Extended USB Board Type M19
ID: 417566
- Required for printing from USB Type B port.
Notes:
- Extended USB Board Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or File Format Converter Type M19.
IEEE 802.11a/g/n Interface Unit Type M19
ID: 417493
- This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.
Memory Unit Type M19 4 GB
ID: MX417498RA
- Expands RAM from 2 to 4 GB.
Notes:
- Memory Unit Type M19 4 GB cannot be installed with Color Controller E-23C or any related options.
OCR Unit Type M13
ID: 417430
- This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).
Postscript3 Unit Type M33
ID: 418055
- Unit ships with standard Postscript3 emulation and PDF Direct Print. This option is available for customers who require True Adobe workflows like Photoshop, Illustrator and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3/PDF Direct Print emulation will be disabled.
ESP XG-PCS-15D Power Filter
ID: 006428MIU
- The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.
NFC Card Reader Type M19
ID: 417573
- Near Field Communication card reader. Used to authenticate users for logging into the device only. Does not support Java SDK applications.
Notes:
- NFC Card Reader Type M19 cannot be installed with Smart Card Reader Built-in Unit Type M19, External Keyboard Bracket Type M19, or External USB Keyboard (No Bracket).
Smart Card Reader Built-in Unit Type M19
ID: 417595
- For use with Ricoh & third party software solutions. The smart card reader and its cable will be covered inside the mainframe when this option is attached. Not all card readers may be supported.
