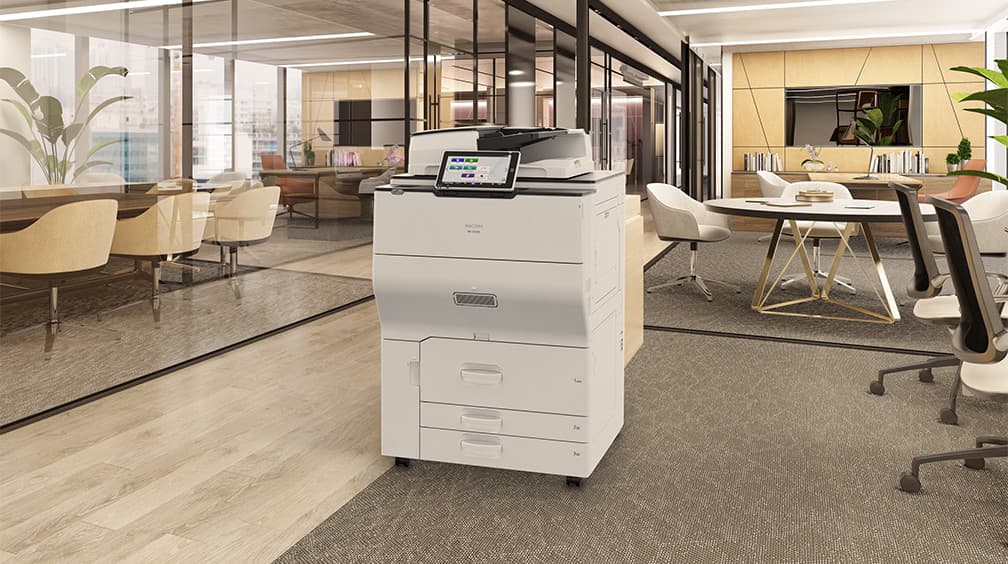

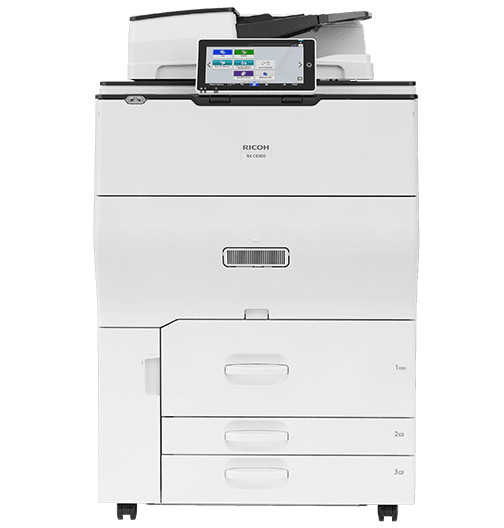

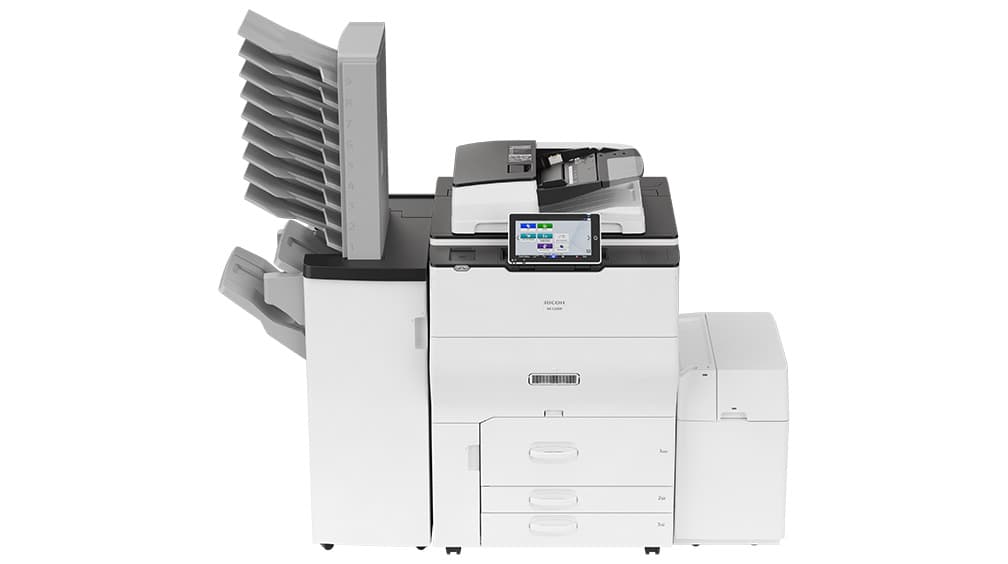

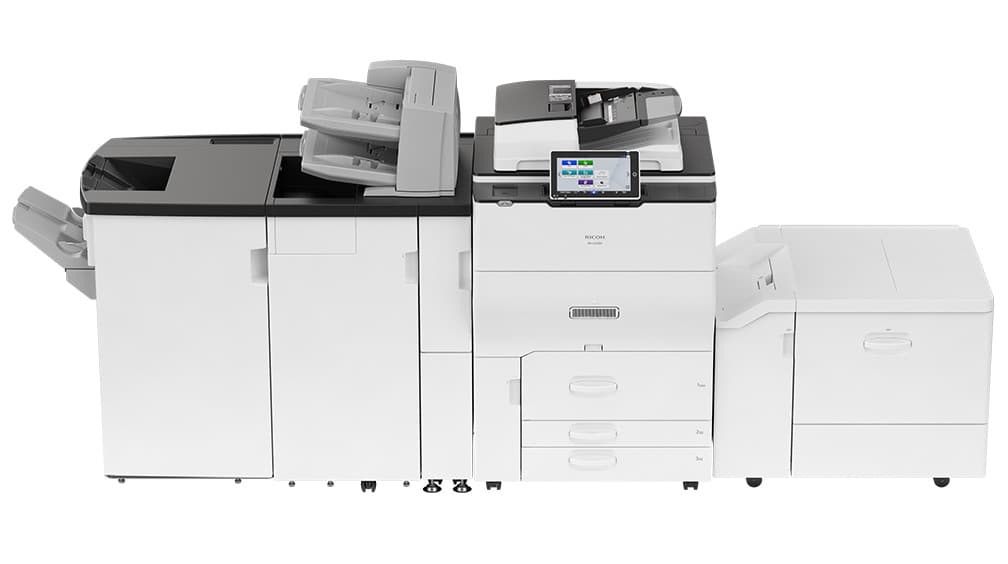

IM C6500

Booklet Finisher SR4160

ID: 423952

• The 2,000-sheet Booklet Finisher allows thick documents to be professionally finished as paginated, duplexed, saddle-stitched folded booklets.
• Up to 20 sheets can be saddle-stitched.
• It also offers 65-sheet, multi-position stapling, mixed sized stapling, optional hole-punching and shift-sort collating.
• Weight: 127.9 lbs. (58 kg)
• W x D x H (inches): 25.87 x 28.74 x 38.59
• W x D x H (mm): 657 x 730 x 980

Notes:

• Booklet Finisher SR4160 cannot be installed with Copy Tray Type 9002, Finisher SR4150 or any related options.

Cooling Fan Unit Type M26

ID: 417677

• Prevents paper bricking.
• Optional cooling fan for Finisher SR4120 and Booklet Finisher SR4130.

Notes:

• This option cannot be installed with Finisher SR4110.

Finisher SR4150

ID: 423951

• This 3,000-sheet Finisher is ideal for offices that produce collated and stapled sets of documents. It offers 65-sheet, multi-position stapling, mixed sized stapling, optional hole-punching and shift-sort collating.
• Weight: 83.8 lbs. (38 kg)
• W x D x H (inches): 25.87 x 28.74 x 38.58
• W x D x H (mm): 657 x 730 x 980

Notes:

• Finisher SR4150 cannot be installed with Copy Tray Type 9002, Booklet Finisher SR4160 or any related options.

Mail Box CS4010

ID: 416633

• The 9-Bin Mailbox offers workgroups the ability to separate and stack document output to designated bins directly from the print driver. This option helps keep workflows streamlined and organized.
• Weight: 33 lbs. (15 kg)
• W x D x H (inches): 21.26 x 23.62 x 25.98
• W x D x H (mm): 540 x 600 x 660

Notes:

• 1. One of the following finishers is required: SR4150 or Booklet Finisher SR4160.
• 2. Mail Box CS4010 cannot be installed with Copy Tray Type 9002

Multi-Fold Unit FD4020

ID: 418185

• Provides automatic inline document folding with the ability to deliver folded output in six different patterns; Half-Fold, Letter Fold‑In (Tri-Fold), Letter Fold-Out (Tri-Fold), Gate-Fold, Double Parallel Fold (Four-Fold) and Z-Fold. The Multi-Folding Unit is ideal for companies that want to produce professionally finished documents such as newsletters, brochures, menus and marketing materials in-house.
• Power Requirements: 120V, 60Hz, 15A
• Weight: 202.82 lbs. (92 kg)
• W x D x H (inches): 18.5 x 27.74 x 38.58
• W x D x H (mm): 470 x 705 x 980

Notes:

• 1. Finisher SR4150 or Booklet Finisher SR4160 must be selected to add this option.
• 2. Multi-Fold Unit FD4020 cannot be installed with Copy Tray Type 9002 or any related options.

Output Jogger Unit Type M25

ID: 417630

• Aligns and stacks output delivered to Finisher SR4150 or Booklet Finisher SR4160.

Punch Unit PU3090 NA

ID: 418332

• Optional hole punching for the Finisher SR3280.
• Supports paper sizes up to 11" x 17".

11" x 17"/A3 Tray Unit Type M26

ID: 417883

• Enables the feeding of 11" x 17"/A3 paper from standard Tandem Tray 1, which is normally fixed for 8.5" x 11"/A4.
• Paper Capacity up to 1,000 sheets.
• Paper Weights up to 68 lb. Bond/256 g/m².

Tab Sheet Holder Type M2

ID: 416642

• Allows users to set up and print on tabs to separate chapters within the document, eliminating the manual collation of document sets.
• Can be used in either Tray 2 or Tray 3, but not both.

Small Paper Feeding Unit Type M37

ID: 418367

• Optional insert for the Single Pass Document Feeder facilitates scanning small documents in sizes from 3.0" x 4.1" to 5.8" x 8.5".

IEEE 802.11a/g/n Interface Unit Type M19

ID: 417493

• This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.

OCR Unit Type M13

ID: 417430

• This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).

Page Keeper Type M37

ID: 418368

• A multi-feed detection sensor that automatically stops a scanning job if more than one page is fed through the SPDF.
• Ideal for environments that rely on scanning workflows and often scan mixed sized originals.

VM Card Type M37

ID: 418410

• ONLY required to support any embedded software app that is developed on SDK-J (i.e. Java).

Notes:

• 1. Memory Unit Type M37 4GB must be selected to add this option.
• 2. If the embedded software app is developed on the SmartSDK (i.e. full-native Android), then the VM Card option and Memory options are NOT required.

Optional Counter Interface Unit Type M12

ID: 417111

• 20-Pin interface used to attach external key counter or key card device.

Smart Card Reader Built-in Unit Type M19

ID: 417595

• For use with Ricoh & third party software solutions. The smart card reader and its cable will be covered inside the mainframe when this option is attached. Not all card readers may be supported.

Notes:

• Fax Option Type M44 must be selected to add this option.
