| Replacement Lamp - Part Number | 512758 Note: Lamps are consumable products and therefore are not covered by the projector’s warranty. |
|---|---|
| 3D Glasses - Part Number | Type 1 - 512511 Note: Native support for Frame Sequential 3D format. Other sources may require a converter that is not provided. |
| Resolution | SVGA - 800 x 600 dpi |
| Liquid Crystal Panel Size | 0.55" |
| White Light Output Brightness | 3,000 lm |
| Contrast Ratio | WXGA: 2,000:1 XGA/SVGA: 2,200:1 |
| Screen Size | 30" - 300" |
| Projection Distance | 39.37" - 393.7" |
| Lamp Type | High pressure mercury (190W) |
| Lamp Life | Standard Mode: 4,500 hours Economy Mode: 6,000 hours |
| Projection Lens | Zoom Ratio: 1.1 Zoom/Focus: Manual/Manual |
| Features | Keystone (Direction: Vertical - Manual); AV Mute; Freeze; Re-size (Magnify); Wall Color Mode; Security Bar; Kensington Lock; Eco Mode; 3D Projection Ready; Front/Rear Tilt Foot Adjuster; High Altitude Mode |
| Dimensions W x D x H | 12.4" x 8.8" x 4" (314 x 224 x 102 mm) |
| Weight | 5.75 lbs. (2.6 kg) |
| Fan Noise | Standard Mode: 34 dB or less Eco Mode: 31 dB or less |
| Operating Environment | Storage Temperature: -20° to 60°C Transportation Temperature: 5°F to 40°F; Humidity: 80% |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | While Operating:; Standard Mode: 230W; Eco Mode: 195W; Standby: 0.5W |

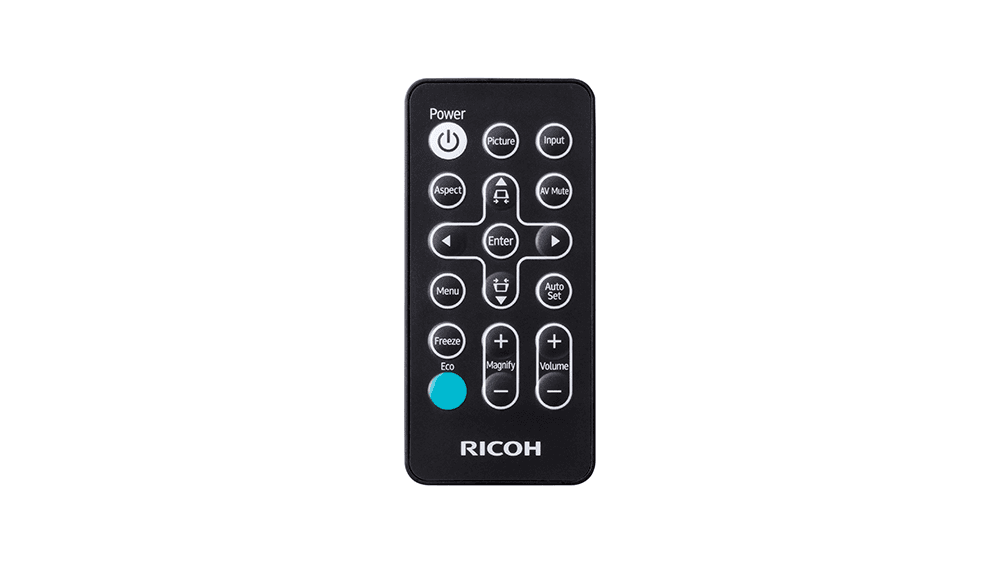

| Whats In the Box | Cables: Single RGB Cable, Power Cord, CD ROM: Operating Instructions; Quick Start Guide; Warranty Sheet and Registration (US only) Carrying Case: Included for PJ X2240 and PJ WX2240 only Remote Control: Remote Control (CR2025 x 1 Battery included) |
