| Replacement Lamp - Part Number | 512927 Note: Lamps are consumable products and therefore are not covered by the projector’s warranty. |
|---|---|
| Projection System | Single Chip Digital Light Processing (DLP) |
| Resolution | HD - 1920 x 1080 dpi |
| Liquid Crystal Panel Size | 0.65" |
| Aspect Ratio | 16:9 |
| White Light Output Brightness | 2,500 lm |
| Contrast Ratio | 1800:1 High contrast mode: 9000:1 |
| Screen Size | 30" - 300" |
| Projection Modes | Standard, Rear, Ceiling, Rear Ceiling |
| Projection Distance | 27.9" - 379.5" (0.71 - 9.64 meters) |
| Lamp Type | High-pressure Mercury (260W) |
| Lamp Life | Standard Mode: 3,000 hours; Eco Mode: 6,000 hours |
| Projection Ratio | 1.068 - 1.451:1 |
| Zoom Ratio | 1.36 |
| Zoom / Focus | Manual/Manual |

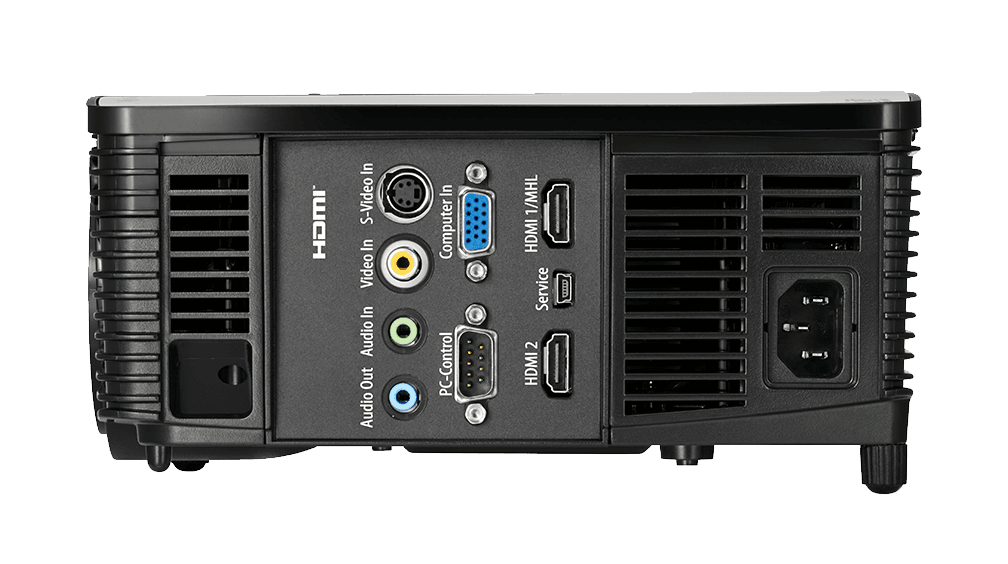

| Image Input | Mini D-sub 15 x 1 |
| Image Output | N/A |
| S - Video | Mini DIN 4 x 1 |
| Audio Output | Mini Jack x 1 |
| HDMI | HDMI x 2 |
| PC Control | D-sub 9 x 1 (RS-232C) |
| USB | N/A |
| Wired LAN | N/A |
| Wireless LAN | N/A |
| Projector Management Utility | N/A |
| Features | Adjuster, AV Mute, Freeze, Re-size (Magnify), Manual Keystone (Horizontal/Vertical), Wall Color Mode, Security Bar, Kensington Lock, Eco Mode, 3D Projection Ready (for use with 3D Glasses) |
| Built-in Speaker | 10W Mono |
| Dimensions W x D x H | 12.4" x 8.8" x 4.1" (314 x 224 x 92 mm) |
| Weight | 6.6 lbs. (3.0 kg) |
| Fan Noise | Standard Mode: 39 dB or less; Eco Mode: 33 dB or less |
| Operating Environment | Temperature 5 ~ 40° C; Humidity: 20 ~ 80%, non-condensing |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Standard Mode: 352W; Eco Mode: 280W; Standby: Less than 0.5W |
| Whats In the Box | Cables: RGB VGA Cable and Power Cord CD-ROM: User Manual, Customer Registration and Warranty Sheet (US only) Carrying Case Lens Cap Remote Control (CR2025 battery included) |
