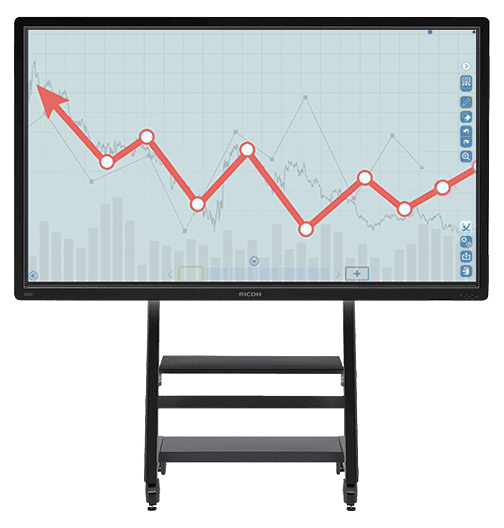

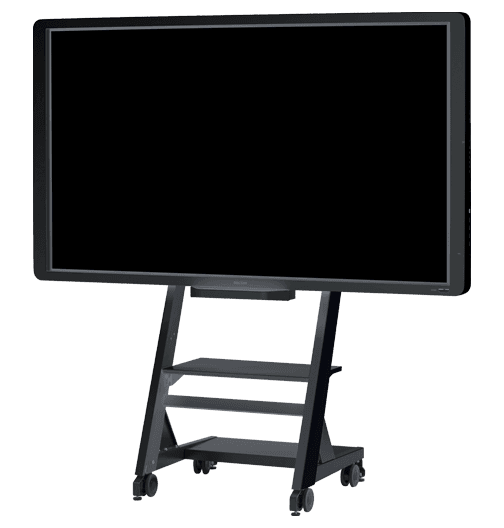

D7510BK

Interactive Whiteboard

ID: 432545

Work on a 75" DLED multi-touch display
Impress with 3840 x 2160 4K resolution
Connect laptops and mobile devices
Work in the cloud and use your preferred apps with our optional Windows® 10 controller

Select from the options below for support and more

Download Manuals

How-To-Videos

Learn about common tasks, topics and features as explained in more than 150 short video tutorials for our most popular devices.

Download Brochure

MyRicoh

If you are a current Ricoh Customer, you can use MyRicoh to get support for your products, purchase supplies, and much more.

Technology	InGlass™ by FlatFrog + Optical Bonding
Touch Points	20 (4 w/IWB software)
Touch Pen Request	>= 10 mm
Accuracy	1 mm
Operating System	Multi-touch (up to 10): Windows^® 7, 8, 8.1, 10 Single Touch: Windows^® 7, Mac^® OS 10.6+
Touch Output	USB 2.0 (Type B)
Cover Glass	2 mm thick anti-glare glass

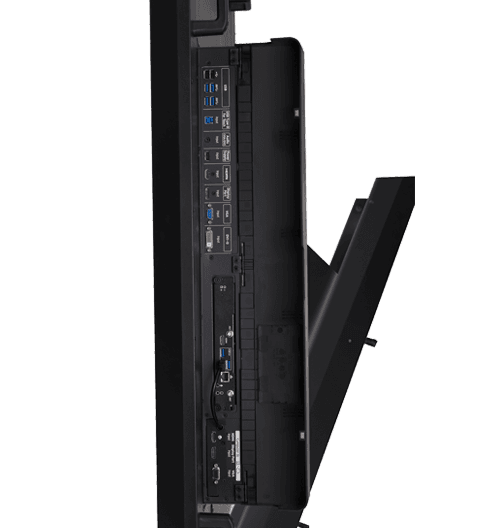

Video Input	Mini D-Sub 15-pin (VGA) x 1 HDMI x 1 (HDCP compliant) DisplayPort x 1 (HDCP compliant)
Video Output	Displayport x 1
Audio Input	3.5 mm Line in Jack x 1 (For VGA)
Audio Output	3.5 mm Headphone Out x 1
Interfaces	USB 3.0 TYPE B x 1 for touch control
Dimensions W x D x H	68.2" x 3.1" x 41.1" (1,733 x 79 x 1,045 mm)
Weight	134.5 lbs. (61 Kg)
Power Source	100 - 240 V, 50/60 Hz
Enhanced features	RS232 Control Daisy Chain, Picture Mode (including Low Blue Light mode), Backlight, Adaptive Contrast (Dimming Control), Brightness, Chroma, Phase, Sharpness, Color Temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source, Picture-in-Picture, Picture-by-Picture, Aspect, Adjust Screen, Touch Feature, Language, Power Save, Control Setting, Touch Control Setting, Set Monitor ID, Advanced Features, Information
Remote sharing function	Up to 20 interactive whiteboards and projector systems Up to 50 remote devices (ipad, Android and PC)
Remote PC Operation	Yes

Power Consumption	Less than 500W
Stand-by mode	Less than .5W
